Cross

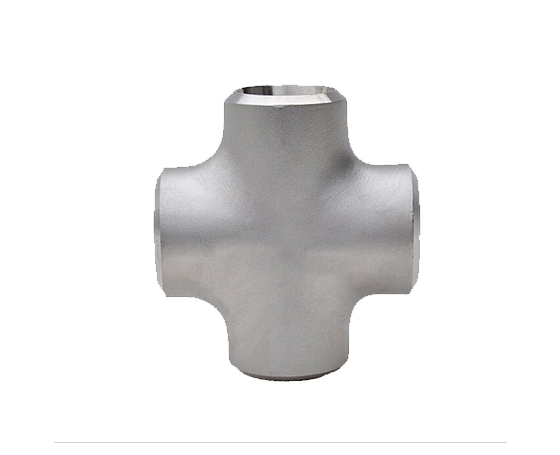

We are a trusted manufacturer of Buttweld Cross fittings, designed to combine or divide flow at 90° angles. Each fitting ensures accurate alignment, high strength, and leak-proof performance under demanding conditions.
- Equal Cross (Straight Cross)
- Reducing Cross (Unequal Cross)
| Product Specifications – Cross Fittings | |
|---|---|
| Types | Equal Cross / Unequal Cross |
| Size | 1/2" NB TO 48" NB (Seamless, Welded and ERW) |
| Wall Thickness | Sch. 5S To Sch. XXS Etc. |
| Stainless Steel | ASTM A403 WP 304/304L/304H/316/316L/321/904/904L Etc. |
| Carbon Steel | ASTM A234 WPB / A420 WPL6 / MSS-SP-43 Etc. |
| Alloy Steel | ASTM A234 WP5 / WP9 / WP11 / WP22 / WP91 Etc. |
| Duplex / Super Duplex | ASTM A182 F51 / F53 / F55 |
| Others (Non-Ferrous / Exotic Grades) | Monel, Inconel, Hastelloy, Copper Nickel (CuNi10Fe1, 6Mn), 70/30 Copper Nickel (CuNi30Fe), DOW Copper, Aluminum Etc. |
| Standards & Specifications |
ASME/ANSI: B16.9, B16.28, B16.11 MSS-SP: 43, 75 DIN/JIS/BS/EN: 2605, B2313, 1640, 10253 Or Customized as per client requirement. |
| Customization | All products can be customized as per client requirements. |
| Nominal Pipe Size (NPS) | Outside Diameter at Bevel, mm (in.) | Run, C | Outlet, M |
|---|---|---|---|
| ½ | 21.3 (0.84) | 25 (1.00) | 25 (1.00) |
| ¾ | 26.7 (1.05) | 29 (1.12) | 29 (1.12) |
| 1 | 33.4 (1.32) | 38 (1.50) | 38 (1.50) |
| 1¼ | 42.2 (1.66) | 48 (1.88) | 48 (1.88) |
| 1½ | 48.3 (1.90) | 57 (2.25) | 57 (2.25) |
| 2 | 60.3 (2.38) | 64 (2.50) | 64 (2.50) |
| 2½ | 73.0 (2.88) | 76 (3.00) | 76 (3.00) |
| 3 | 88.9 (3.50) | 86 (3.38) | 86 (3.38) |
| 3½ | 101.6 (4.00) | 95 (3.75) | 95 (3.75) |
| 4 | 114.3 (4.50) | 105 (4.12) | 105 (4.12) |
| 5 | 141.3 (5.56) | 124 (4.88) | 124 (4.88) |
| 6 | 168.3 (6.62) | 143 (5.62) | 143 (5.62) |
| 8 | 219.1 (8.62) | 178 (7.00) | 178 (7.00) |
| 10 | 273.0 (10.75) | 216 (8.50) | 216 (8.50) |
| 12 | 323.8 (12.75) | 254 (10.00) | 254 (10.00) |
| 14 | 355.6 (14.00) | 279 (11.00) | 279 (11.00) |
| 16 | 406.4 (16.00) | 305 (12.00) | 305 (12.00) |
| 18 | 457.0 (18.00) | 343 (13.50) | 343 (13.50) |
| 20 | 508.0 (20.00) | 381 (15.00) | 381 (15.00) |
| 22 | 559.0 (22.00) | 419 (16.50) | 419 (16.50) |
| 24 | 610.0 (24.00) | 432 (17.00) | 432 (17.00) |
| 26 | 660.0 (26.00) | 495 (19.50) | 495 (19.50) |
| 28 | 711.0 (28.00) | 521 (20.50) | 521 (20.50) |
| 30 | 762.0 (30.00) | 559 (22.00) | 559 (22.00) |
| 32 | 813.0 (32.00) | 597 (23.50) | 597 (23.50) |
| 34 | 864.0 (34.00) | 635 (25.00) | 635 (25.00) |
| 36 | 914.0 (36.00) | 673 (26.50) | 673 (26.50) |
| 38 | 965.0 (38.00) | 711 (28.00) | 711 (28.00) |
| 40 | 1 016.0 (40.00) | 749 (29.50) | 749 (29.50) |
| 42 | 1 067.0 (42.00) | 762 (30.00) | 711 (28.00) |
| 44 | 1 118.0 (44.00) | 813 (32.00) | 762 (30.00) |
| 46 | 1 168.0 (46.00) | 851 (33.50) | 800 (31.50) |
| 48 | 1 219.0 (48.00) | 889 (35.00) | 838 (33.00) |
