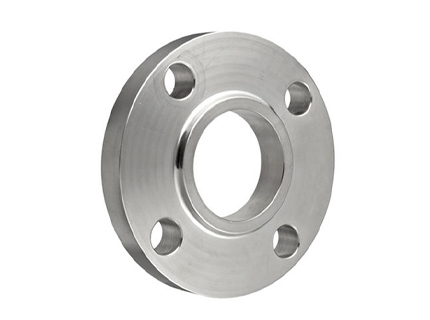

At Parmar TechnoForge Pvt. Ltd., we manufacture high-quality Flanges designed to connect pipes, valves, pumps, and other equipment in a secure, leak-proof manner. Our flanges are widely used in oil & gas, petrochemical, chemical, power, and water treatment industries, providing strong mechanical connections in high-pressure and high-temperature piping systems. We produce weld neck, slip-on, blind, socket weld, threaded, lap joint, and reducing flanges according to ASME B16.5, ASME B16.47, and API 605 standards, ensuring dimensional accuracy, mechanical strength, and durability.

Types Weld neck, Slip-on, Blind, Socket Weld, Lap Joint, Spectacles, Long Weld neck, etc.
Size 1/2" NB TO 48" NB
Class 150#, 300#, 400#, 600#, 900#, 1500# & 2500#
Stainless Steel ASTM A182 F304/304L/316/316L/321/Etc.
Carbon Steel ASTM A105/A105N/A350 LF2, Etc.
Duplex / Super Duplex ASTM A182 F51/F53/F55/UNS S31803/S32750/S32760
Alloy Steel ASTM A182 F5/F9/F11/F22/Etc.
Others Non-Ferrous / Exotic Grade Monel, Inconel, Hastelloy, Copper Nickel (CuNi10Fe1,6Mn), 70/30 Copper Nickel (CuNi30Fe), DOW Copper, Aluminium, Etc.
Standards & Specifications ASME-B16.5, ASME-B16.47, API-605, MSS-SP-44, DIN/BS, NACE-MR0175/MR0103, PED / IBR Certification (where applicable)
CL 150 Flanges

Dimensions of CL. 150 Flanges

Nominal Pipe Size Outside Diameter of Flange O Thickness of Flange tf Thickness Lap Joint tf Diameter of Hub X Diameter Beginning of Chamfer Welding Neck Ah Threaded Slip-on Socket Welding Y Lapped Y Welding Neck Y Thread Length Threaded Min. T Slip-on Socket Welding Min. B Lapped Min. B Welding Neck/Socket Welding B Corner Bore Radius of Lapped Flange and Pipe r Depth of Socket D
1/2 3.5 0.38 0.44 1.19 0.84 0.56 0.62 1.81 0.62 0.88 0.9 0.62 0.12 0.38
3/4 3.88 0.44 0.5 1.5 1.05 0.56 0.62 2 0.62 1.09 1.11 0.82 0.12 0.44
1 4.25 0.5 0.56 1.94 1.32 0.62 0.69 2.12 0.69 1.36 1.38 1.05 0.12 0.5
1 1/4 4.62 0.56 0.62 2.31 1.66 0.75 0.81 2.19 0.81 1.7 1.72 1.38 0.19 0.56
1 1/2 5 0.62 0.69 2.56 1.9 0.81 0.88 2.38 0.88 1.95 1.97 1.61 0.25 0.62
2 6 0.69 0.75 3.06 2.38 0.94 1 2.44 1 2.44 2.46 2.07 0.31 0.69
2 1/2 7 0.81 0.88 3.56 2.88 1.06 1.12 2.69 1.12 2.94 2.97 2.47 0.31 0.75
3 7.5 0.88 0.94 4.25 3.5 1.12 1.19 2.69 1.19 3.57 3.6 3.07 0.38 ...
3 1/2 8.5 0.88 0.94 4.81 4 1.19 1.25 2.75 1.25 4.07 4.1 3.55 0.38 ...
4 9 0.88 0.94 5.31 4.5 1.25 1.31 2.94 1.31 4.57 4.6 4.03 0.44 ...
5 10 0.88 0.94 6.44 5.56 1.38 1.44 3.44 1.44 5.66 5.69 5.05 0.44 ...
6 11 0.94 1 7.56 6.63 1.5 1.56 3.44 1.56 6.72 6.75 6.07 0.5 ...
8 13.5 1.06 1.12 9.69 8.63 1.69 1.75 3.94 1.75 8.72 8.75 7.98 0.5 ...
10 16 1.12 1.19 12 10.75 1.88 1.94 3.94 1.94 10.88 10.92 10.02 0.5 ...
12 19 1.19 1.25 14.38 12.75 2.12 2.19 4.44 2.19 12.88 12.92 12 0.5 ...
14 21 1.31 1.38 15.75 14 2.19 3.12 4.94 2.25 14.14 14.18 0.5 ...
16 23.5 1.38 1.44 18 16 2.44 3.44 4.94 2.5 16.16 16.19 0.5 ...
18 25 1.5 1.56 19.88 18 2.62 3.81 5.44 2.69 18.18 18.2 0.5 ...
20 27.5 1.62 1.69 22 20 2.81 4.06 5.62 2.88 20.2 20.25 0.5 ...
24 32 1.81 1.88 26.12 24 3.19 4.38 5.94 3.25 24.25 24.25 0.5 ...

Note: (1) This dimension is for the large end of the hub, which may be straight or tapered. Taper shall not exceed 7° on threaded, slip-on, and lapped flanges.

Dimensions of CL. 300 Flanges

DIMENSIONS OF CL. 300 FLANGES
Nominal Pipe Size Outside Diameter of Flange (O) Thickness of Flange Min. (tf) Thickness Lap Joint Min. (t) Diameter of Hub (X) Diameter Beginning of Chamfer Welding Neck (Ah) Threaded / Slip-on / Socket Welding (Y) Lapped (Y) Welding Neck (Y) Thread Length Threaded Min. (T) Slip-on Socket Welding Min. (B) Lapped Min. (B) Welding Neck / Socket Welding (B) Corner Bore Radius of Flange and Pipe (r) Counter-bore Threaded Flange Min. (Q) Depth of Socket (D)
1/2 3.75 0.5 0.56 1.5 0.84 0.81 0.88 2 0.62 0.88 0.9 0.62 0.12 0.93 0.38
3/4 4.62 0.56 0.62 1.88 1.05 0.94 1 2.19 0.62 1.09 1.11 0.82 0.12 1.14 0.44
1 4.88 0.62 0.69 2.12 1.32 1 1.06 2.38 0.69 1.36 1.38 1.05 0.12 1.41 1/2
1 1/4 5.25 0.69 0.75 2.5 1.66 1 1.06 2.5 0.81 1.7 1.72 1.38 0.19 1.75 5/9
1 1/2 6.12 0.75 0.81 2.75 1.9 1.13 1.19 2.63 0.88 1.95 1.97 1.61 0.25 1.98 5/8
2 6.5 0.81 0.88 3.31 2.38 1.25 1.31 2.69 1.12 2.44 2.46 2.07 0.31 2.5 2/3
2 1/2 7.5 0.94 1 3.94 2.88 1.44 1.5 2.94 1.25 2.94 2.97 2.47 0.31 3 3/4
3 8.25 1.06 1.12 4.62 3.5 1.63 1.69 3.06 1.25 3.57 3.6 3.07 0.38 3.63 4/5
3 1/2 9 1.12 1.19 5.25 4 1.69 1.75 3.13 1.44 4.07 4.1 3.55 0.38 4.13
4 10 1.19 1.25 5.75 4.5 1.82 1.88 3.32 1.44 4.57 4.6 4.03 0.44 4.63
5 11 1.31 1.38 7 5.56 1.94 2 3.82 1.69 5.66 5.69 5.05 0.44 5.69
6 12.5 1.38 1.44 8.12 6.63 2 2.06 3.82 1.81 6.72 6.75 6.07 0.5 6.75
8 15 1.56 1.62 10.25 8.63 2.38 2.44 4.32 2 8.72 8.75 7.98 0.5 8.75
10 17.5 1.81 1.88 12.62 10.75 2.56 3.75 4.56 2.19 10.88 10.92 10.02 0.5 10.88
12 20.5 1.94 2 14.75 12.75 2.82 4 5.06 2.38 12.88 12.92 12 0.5 12.94
14 23 2.06 2.12 16.75 14 2.94 4.38 5.56 2.5 14.14 14.18 0.5 14.19
16 25.5 2.19 2.25 19 16 3.19 4.75 5.69 2.69 16.16 16.19 0.5 16.19
18 28 2.31 2.38 21 18 3.44 5.12 6.19 2.75 18.18 18.2 0.5 18.19
20 30.5 2.44 2.5 23.12 20 3.69 5.5 6.32 2.88 20.2 20.25 0.5 20.19
24 36 2.69 2.75 27.62 24 4.13 6 6.56 3.25 24.25 24.25 0.5 24.19

Note: (1) This dimension is for the large end of the hub, which may be straight or tapered. Taper shall not exceed 7° on threaded, slip-on, and lapped flanges.

Dimensions of CL. 600 Flanges

DIMENSIONS OF CL. 600 FLANGES
Nominal Pipe Size Outside Diameter of Flange (O) Thickness of Flange Min. (t) Diameter of Hub (X) Hub Dia. Beginning of Chamfer Welding Neck (A) Length Through Hub Threaded/Slip-on (Y) Length Through Hub Lapped (Y) Length Through Hub Welding Neck (Y) Thread Length Min. (T) Bore Slip-on Min. (B) Bore Lapped Min. (B) Bore Welding Neck (B) Corner Radius (r) Counter-bore Threaded Flange (Q) Depth of Socket (D)
1/2 3.75 0.56 1.50 0.84 0.88 0.88 2.06 0.62 0.88 0.90 To Be Specified By Purchaser 0.12 0.93 0.38
3/4 4.62 0.62 1.88 1.05 1.00 1.00 2.25 0.62 1.09 1.11 0.12 1.14 0.44
1 4.88 0.69 2.12 1.32 1.06 1.06 2.44 0.69 1.36 1.38 0.12 1.41 0.50
1 1/4 5.25 0.81 2.50 1.66 1.12 1.12 2.62 0.81 1.70 1.72 0.19 1.75 0.56
1 1/2 6.12 0.88 2.75 1.90 1.25 1.25 2.75 0.88 1.95 1.97 0.25 1.99 0.62
2 6.50 1.00 3.31 2.38 1.44 1.44 2.88 1.12 2.44 2.46 0.31 2.50 0.69
2 1/2 7.50 1.12 3.94 2.88 1.62 1.62 3.12 1.25 2.94 2.97 0.31 3.00 0.75
3 8.25 1.25 4.62 3.50 1.81 1.81 3.25 1.38 3.57 3.60 0.38 3.63 0.81
3 1/2 9.00 1.38 5.25 4.00 1.94 1.94 3.38 1.56 4.07 4.10 0.38 4.13
4 10.75 1.50 6.00 4.50 2.12 2.12 4.00 1.62 4.57 4.60 0.44 4.63
5 13.00 1.75 7.44 5.56 2.38 2.38 4.50 1.88 5.66 5.69 0.44 5.69
6 14.00 1.88 8.75 6.63 2.62 2.62 4.62 2.00 6.72 6.75 0.50 6.75
8 16.50 2.19 10.75 8.63 3.00 3.00 5.25 2.25 8.72 8.75 0.50 8.75
10 20.00 2.50 13.50 10.75 3.38 4.38 6.00 2.56 10.88 10.92 0.50 10.88
12 22.00 2.62 15.75 12.75 3.62 4.62 6.12 2.75 12.88 12.92 0.50 12.94
14 23.75 2.75 17.00 14.00 3.69 5.00 6.50 2.88 14.14 14.18 0.50 14.19
16 27.00 3.00 19.50 16.00 4.19 5.50 7.00 3.06 16.16 16.19 0.50 16.19
18 29.25 3.25 21.50 18.00 4.62 6.00 7.25 3.12 18.18 18.20 0.50 18.19
20 32.00 3.50 24.00 20.00 5.00 6.50 7.50 3.25 20.20 20.25 0.50 20.19
24 37.00 4.00 28.25 24.00 5.50 7.25 8.00 3.62 24.25 24.25 0.50 24.19

Note: (1) This dimension is for the large end of the hub, which may be straight or tapered. Taper shall not exceed 7° on threaded, slip-on, and lapped flanges.
