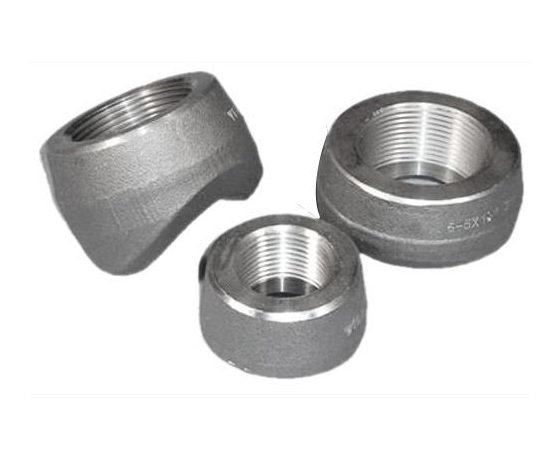

Threadolet
Threadolets provide a threaded branch connection without welding inside the bore. Ideal for small-bore outlet applications up to 2”. Precision-forged, heat-treated, and CNC-machined to meet ASME B16.11, MSS-SP-97, and BS 3799 standards.
- Threaded (NPT / BSPT) branch connection design
- No need for internal bore welding
- Compact, durable, and corrosion-resistant construction
- Suitable for high-pressure piping systems
Product Specifications
| Size | 1/8" NB to 2" NB (Socket Weld & Threaded – NPT, BSPT, BSPP) |
|---|---|
| Class | 2000#, 3000#, 6000#, 9000# |
| Stainless Steel | ASTM A182 F304 / 304L / 316 / 316L / 321 / 904 / 904L |
| Carbon Steel | ASTM A105 / A105N / A350 LF2 Etc. |
| Alloy Steel | ASTM A182 F5 / F9 / F11 / F22 / F91 / Etc. |
| Duplex / Super Duplex | ASTM A182 F51 / F53 / F55 / UNS S31803 / S32750 / S32760 |
| Others Non-Ferrous / Exotic Grades | Monel, Inconel, Hastelloy, Copper Nickel (CuNi10Fe1, 6Mn), 70/30 Copper Nickel (CuNi30Fe), DOW Copper, Aluminium Etc. |
| Standards & Specifications |
ASME B16.11 MSS SP-79 / SP-83 / SP-95 BS 3799 ASME B31.3 NACE MR0175 / MR0103 IBR / PED Certification available All products can be customized as per client requirements. |
