Reducers
We produce Buttweld Reducers essential for reducing pipe sizes while maintaining flow efficiency and system integrity. Available in concentric and eccentric types, they ensure smooth flow and leak-free performance.

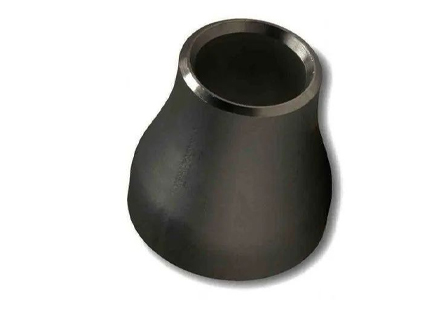

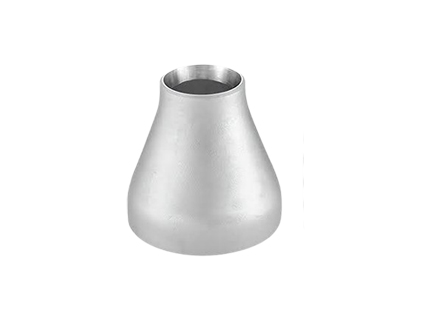

- Concentric Reducer (Con Red)

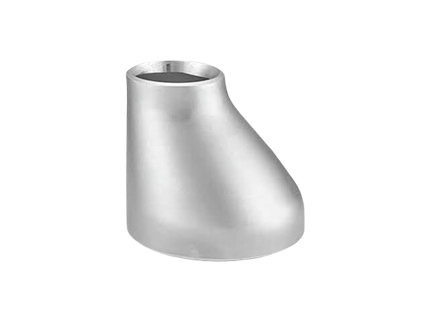

- Eccentric Reducer (Ecc Red)
- Custom Reducers as per drawings
| Reducers (Concentric & Eccentric) | |
|---|---|
| Types | Concentric Reducers / Eccentric Reducers |
| Size | 1/2" NB TO 48" NB (Seamless, Welded and ERW) |
| Wall Thickness | Sch. 5S To Sch. XXS Etc. |
| Stainless Steel Grades | ASTM A403 WP 304 / 304L / 304H / 316 / 316L / 321 / 904 / 904L Etc. |
| Carbon Steel Grades | ASTM A234 WPB / A420 WPL6 / MSS-SP-43 Etc. |
| Alloy Steel Grades | ASTM A234 WP5 / WP9 / WP11 / WP22 / WP91 Etc. |
| Duplex / Super Duplex | ASTM A182 F51 / F53 / F55 |
| Non-Ferrous / Exotic Grades | Monel, Inconel, Hastelloy, Copper Nickel (CuNi10Fe1, 6Mn), 70/30 Copper Nickel (CuNi30Fe), DOW Copper, Aluminium Etc. |
| ASME / ANSI Standards | B16.9, B16.28, B16.11 |
| MSS-SP Standards | 43, 75 |
| Other Standards | DIN / JIS / BS / EN: 2605, B2313, 1640, 10253 or Customized as per client’s requirement |
| Customization | All products can be customized as per client requirements |
| Nominal Pipe Size (NPS) | Outside Diameter at Bevel – Large End (mm/in.) | Outside Diameter at Bevel – Small End (mm/in.) | End-to-End H (mm/in.) |
|---|---|---|---|
| 3/4 x 1/2 | 26.7 (1.05) | 21.3 (0.84) | 38 (1.50) |
| 3/4 x 3/8 | 26.7 (1.05) | 17.3 (0.68) | 38 (1.50) |
| 1 x 3/4 | 33.4 (1.32) | 26.7 (1.05) | 51 (2.00) |
| 1 x 1/2 | 33.4 (1.32) | 21.3 (0.84) | 51 (2.00) |
| 1¼ x 1 | 42.2 (1.66) | 33.4 (1.32) | 51 (2.00) |
| 1¼ x 3/4 | 42.2 (1.66) | 26.7 (1.05) | 51 (2.00) |
| 1¼ x 1/2 | 42.2 (1.66) | 21.3 (0.84) | 51 (2.00) |
| 1½ x 1½ | 48.3 (1.90) | 42.2 (1.66) | 64 (2.50) |
| 1½ x 1 | 48.3 (1.90) | 33.4 (1.32) | 64 (2.50) |
| 1½ x 3/4 | 48.3 (1.90) | 26.7 (1.05) | 64 (2.50) |
| 1½ x 1/2 | 48.3 (1.90) | 21.3 (0.84) | 64 (2.50) |
| 2 x 1/2 | 60.3 (2.38) | 48.3 (1.90) | 76 (3.00) |
| 2 x 1¼ | 60.3 (2.38) | 42.2 (1.66) | 76 (3.00) |
| 2 x 1 | 60.3 (2.38) | 33.4 (1.32) | 76 (3.00) |
| 2 x 3/4 | 60.3 (2.38) | 26.7 (1.05) | 76 (3.00) |
| 2½ x 2 | 73.0 (2.88) | 60.3 (2.38) | 89 (3.50) |
| 2½ x 1½ | 73.0 (2.88) | 48.3 (1.90) | 89 (3.50) |
| 2½ x 1¼ | 73.0 (2.88) | 42.2 (1.66) | 89 (3.50) |
| 2½ x 1 | 73.0 (2.88) | 33.4 (1.32) | 89 (3.50) |
| 3 x 2½ | 88.9 (3.50) | 73.0 (2.88) | 89 (3.50) |
| 3 x 2 | 88.9 (3.50) | 60.3 (2.38) | 89 (3.50) |
| 3 x 1½ | 88.9 (3.50) | 48.3 (1.90) | 89 (3.50) |
| 3 x 1¼ | 88.9 (3.50) | 42.2 (1.66) | 89 (3.50) |
| 3½ x 3 | 101.6 (4.00) | 88.9 (3.50) | 102 (4.00) |
| 3½ x 2½ | 101.6 (4.00) | 73.0 (2.88) | 102 (4.00) |
| 3½ x 2 | 101.6 (4.00) | 60.3 (2.38) | 102 (4.00) |
| 3½ x 1½ | 101.6 (4.00) | 48.3 (1.90) | 102 (4.00) |
| 3½ x 1¼ | 101.6 (4.00) | 42.2 (1.66) | 102 (4.00) |
| 4 x 3½ | 114.3 (4.50) | 101.6 (4.00) | 102 (4.00) |
| 4 x 3 | 114.3 (4.50) | 88.9 (3.50) | 102 (4.00) |
| 4 x 2½ | 114.3 (4.50) | 73.0 (2.88) | 102 (4.00) |
| 4 x 2 | 114.3 (4.50) | 60.3 (2.38) | 102 (4.00) |
| 4 x 1½ | 114.3 (4.50) | 48.3 (1.90) | 102 (4.00) |
| 5 x 4 | 141.3 (5.56) | 114.3 (4.50) | 127 (5.00) |
| 5 x 3½ | 141.3 (5.56) | 101.6 (4.00) | 127 (5.00) |
| 5 x 3 | 141.3 (5.56) | 88.9 (3.50) | 127 (5.00) |
| 5 x 2½ | 141.3 (5.56) | 73.0 (2.88) | 127 (5.00) |
| 5 x 2 | 141.3 (5.56) | 60.3 (2.38) | 127 (5.00) |
| 6 x 5 | 168.3 (6.62) | 141.3 (5.56) | 140 (5.50) |
| 6 x 4 | 168.3 (6.62) | 114.3 (4.50) | 140 (5.50) |
| 6 x 3½ | 168.3 (6.62) | 101.6 (4.00) | 140 (5.50) |
| 6 x 3 | 168.3 (6.62) | 88.9 (3.50) | 140 (5.50) |
| 6 x 2½ | 168.3 (6.62) | 73.0 (2.88) | 140 (5.50) |
| 8 x 6 | 219.1 (8.62) | 168.3 (6.62) | 152 (6.00) |
| 8 x 5 | 219.1 (8.62) | 141.3 (5.56) | 152 (6.00) |
| 8 x 4 | 219.1 (8.62) | 114.3 (4.50) | 152 (6.00) |
| 8 x 3½ | 219.1 (8.62) | 101.6 (4.00) | 152 (6.00) |
| 10 x 8 | 273.0 (10.75) | 219.1 (8.62) | 178 (7.00) |
| 10 x 6 | 273.0 (10.75) | 168.3 (6.62) | 178 (7.00) |
| 10 x 5 | 273.0 (10.75) | 141.3 (5.56) | 178 (7.00) |
| 10 x 4 | 273.0 (10.75) | 114.3 (4.50) | 178 (7.00) |
| 12 x 10 | 323.8 (12.75) | 273.0 (10.75) | 203 (8.00) |
| 12 x 8 | 323.8 (12.75) | 219.1 (8.62) | 203 (8.00) |
| 12 x 6 | 323.8 (12.75) | 168.3 (6.62) | 203 (8.00) |
| 12 x 5 | 323.8 (12.75) | 141.3 (5.56) | 203 (8.00) |
| 14 x 12 | 355.6 (14.00) | 323.8 (12.75) | 330 (13.00) |
| 14 x 10 | 355.6 (14.00) | 273.0 (10.75) | 330 (13.00) |
| 14 x 8 | 355.6 (14.00) | 219.1 (8.62) | 330 (13.00) |
| 14 x 6 | 355.6 (14.00) | 168.3 (6.62) | 330 (13.00) |
| 16 x 14 | 406.4 (16.00) | 355.6 (14.00) | 356 (14.00) |
| 16 x 12 | 406.4 (16.00) | 323.8 (12.75) | 356 (14.00) |
| 16 x 10 | 406.4 (16.00) | 273.0 (10.75) | 356 (14.00) |
| 16 x 8 | 406.4 (16.00) | 219.1 (8.62) | 356 (14.00) |
| 18 x 16 | 457 (18.00) | 406.4 (16.00) | 381 (15.00) |
| 18 x 14 | 457 (18.00) | 355.6 (14.00) | 381 (15.00) |
| 18 x 12 | 457 (18.00) | 323.8 (12.75) | 381 (15.00) |
| 18 x 10 | 457 (18.00) | 273.0 (10.75) | 381 (15.00) |
| 20 x 18 | 508 (20.00) | 457 (18.00) | 508 (20.00) |
| 20 x 16 | 508 (20.00) | 406.4 (16.00) | 508 (20.00) |
| 20 x 14 | 508 (20.00) | 355.6 (14.00) | 508 (20.00) |
| 20 x 12 | 508 (20.00) | 323.8 (12.75) | 508 (20.00) |
| 22 x 20 | 559 (22.00) | 508 (20.00) | 508 (20.00) |
| 22 x 18 | 559 (22.00) | 457 (18.00) | 508 (20.00) |
| 22 x 16 | 559 (22.00) | 406.4 (16.00) | 508 (20.00) |
| 22 x 14 | 559 (22.00) | 355.4 (14.00) | 508 (20.00) |
| 24 x 22 | 610 (24.00) | 559 (22.00) | 508 (20.00) |
| 24 x 20 | 610 (24.00) | 508 (20.00) | 508 (20.00) |
| 24 x 18 | 610 (24.00) | 457 (18.00) | 508 (20.00) |
| 24 x 16 | 610 (24.00) | 406.4 (16.00) | 508 (20.00) |
| 26 x 24 | 660 (26.00) | 610 (24.00) | 610 (24.00) |
| 26 x 22 | 660 (26.00) | 559 (22.00) | 610 (24.00) |
| 26 x 20 | 660 (26.00) | 508 (20.00) | 610 (24.00) |
| 26 x 18 | 660 (26.00) | 457 (18.00) | 610 (24.00) |
| 28 x 26 | 711 (28.00) | 660 (26.00) | 610 (24.00) |
| 28 x 24 | 711 (28.00) | 610 (24.00) | 610 (24.00) |
| 28 x 20 | 711 (28.00) | 508 (20.00) | 610 (24.00) |
| 28 x 18 | 711 (28.00) | 457 (18.00) | 610 (24.00) |
| 30 x 28 | 762 (30.00) | 711 (28.00) | 610 (24.00) |
| 30 x 26 | 762 (30.00) | 660 (26.00) | 610 (24.00) |
| 30 x 24 | 762 (30.00) | 610 (24.00) | 610 (24.00) |
| 30 x 20 | 762 (30.00) | 508 (20.00) | 610 (24.00) |
| 32 x 30 | 813 (32.00) | 762 (30.00) | 610 (24.00) |
| 32 x 28 | 813 (32.00) | 711 (28.00) | 610 (24.00) |
| 32 x 26 | 813 (32.00) | 660 (26.00) | 610 (24.00) |
| 32 x 24 | 813 (32.00) | 610 (24.00) | 610 (24.00) |
| 34 x 32 | 864 (34.00) | 813 (32.00) | 610 (24.00) |
| 34 x 30 | 864 (34.00) | 762 (30.00) | 610 (24.00) |
| 34 x 26 | 864 (34.00) | 660 (26.00) | 610 (24.00) |
| 34 x 24 | 864 (34.00) | 610 (24.00) | 610 (24.00) |
| 36 x 34 | 914 (36.00) | 864 (34.00) | 610 (24.00) |
| 36 x 32 | 914 (36.00) | 813 (32.00) | 610 (24.00) |
| 36 x 30 | 914 (36.00) | 762 (30.00) | 610 (24.00) |
| 36 x 26 | 914 (36.00) | 660 (26.00) | 610 (24.00) |
| 36 x 24 | 914 (36.00) | 610 (24.00) | 610 (24.00) |
| 38 x 36 | 965 (38.00) | 914 (36.00) | 610 (24.00) |
| 38 x 34 | 965 (38.00) | 864 (34.00) | 610 (24.00) |
| 38 x 32 | 965 (38.00) | 813 (32.00) | 610 (24.00) |
| 38 x 30 | 965 (38.00) | 762 (30.00) | 610 (24.00) |
| 38 x 28 | 965 (38.00) | 711 (28.00) | 610 (24.00) |
| 38 x 26 | 965 (38.00) | 660 (26.00) | 610 (24.00) |
| 40 x 38 | 1016 (40.00) | 965 (38.00) | 610 (24.00) |
| 40 x 36 | 1016 (40.00) | 914 (36.00) | 610 (24.00) |
| 40 x 34 | 1016 (40.00) | 864 (34.00) | 610 (24.00) |
| 40 x 32 | 1016 (40.00) | 813 (32.00) | 610 (24.00) |
| 40 x 30 | 1016 (40.00) | 762 (30.00) | 610 (24.00) |
| 42 x 40 | 1067 (42.00) | 1016 (40.00) | 610 (24.00) |
| 42 x 38 | 1067 (42.00) | 965 (38.00) | 610 (24.00) |
| 42 x 36 | 1067 (42.00) | 914 (36.00) | 610 (24.00) |
| 42 x 34 | 1067 (42.00) | 864 (34.00) | 610 (24.00) |
| 42 x 32 | 1067 (42.00) | 813 (32.00) | 610 (24.00) |
| 42 x 30 | 1067 (42.00) | 762 (30.00) | 610 (24.00) |
| 44 x 42 | 1118 (44.00) | 1067 (42.00) | 610 (24.00) |
| 44 x 40 | 1118 (44.00) | 1016 (40.00) | 610 (24.00) |
| 44 x 38 | 1118 (44.00) | 965 (38.00) | 610 (24.00) |
| 44 x 36 | 1118 (44.00) | 914 (36.00) | 610 (24.00) |
| 46 x 44 | 1168 (46.00) | 1118 (44.00) | 711 (28.00) |
| 46 x 42 | 1168 (46.00) | 1067 (42.00) | 711 (28.00) |
| 46 x 40 | 1168 (46.00) | 1016 (40.00) | 711 (28.00) |
| 46 x 38 | 1168 (46.00) | 965 (38.00) | 711 (28.00) |
| 48 x 46 | 1219 (48.00) | 1168 (46.00) | 711 (28.00) |
| 48 x 44 | 1219 (48.00) | 1118 (44.00) | 711 (28.00) |
| 48 x 42 | 1219 (48.00) | 1067 (42.00) | 711 (28.00) |
| 48 x 40 | 1219 (48.00) | 1016 (40.00) | 711 (28.00) |
